プロダクト細部
起源の場所: 中国深Shenzhen
ブランド名: Miracle Bean
証明: CE ROSH EMC
モデル番号: XH-LPV-120W-12
支払及び船積みの言葉
最小注文数量: 1ピース
価格: negotiate
パッケージの詳細: 漫画または木製
受渡し時間: 5-15DAYS
支払条件: T/T、ウェスタンユニオン
供給の能力: 1ヶ月あたりの10000pieces
1商品名: |
電源 |
2Shell Material: |
Aluminium Alloy |
3IPクラス: |
IP67/IP65 |
4perating Temperature: |
-20°C To 60°C |
5製品サイズ: |
190*49*34mm |
6認定: |
CE/FCC/ROHS |
7utput Power: |
120W |
8Color: |
Silver |
9保護: |
温度上の/Over Load短絡/ |
10効率: |
87.5% |
商品名: |
電源 |
Shell Material: |
Aluminium Alloy |
IPクラス: |
IP67/IP65 |
perating Temperature: |
-20°C To 60°C |
製品サイズ: |
190*49*34mm |
認定: |
CE/FCC/ROHS |
utput Power: |
120W |
Color: |
Silver |
保護: |
温度上の/Over Load短絡/ |
効率: |
87.5% |

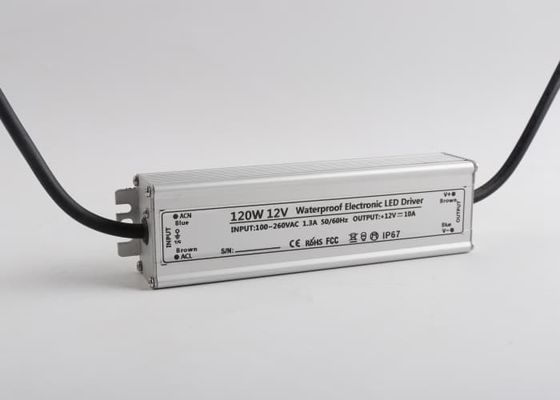

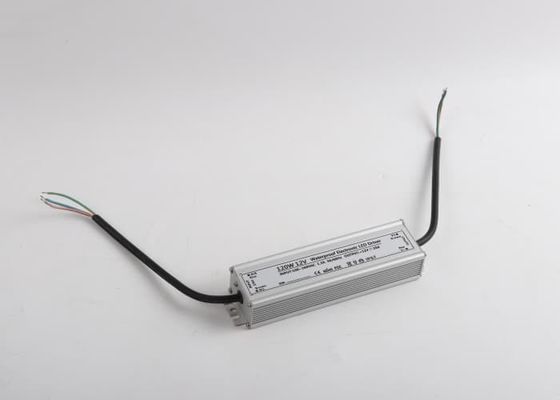

High Efficiency 120W Waterproof Outdoor Indoor Led Lights Power Supply Driver with DC12V Output
Led power supply Product Description
| Modle | XH-LPV-120W-12 |
| Output current range | 12V |
| DC output power | 120W |
| AC Input Current |
2.4A/115V,1.4A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing |
| Dimesion |
190*49*34mm(L*W*H) |
| Efficiency |
87.5% |
| Weight |
0.65kg |
Description
The XH-LPV-120W series is a waterproof AC-to-DC LED driver power supply, designed with constant voltage, constant current, and constant power output. It adopts a universal international AC input voltage range, and the entire series provides output voltages of 12V, 15V, 24V, 27V, 36V, and 48V.
With a conversion efficiency of up to 90%, it features a fanless design, allowing it to operate within a case temperature range of -20°C to +60°C under natural air-cooled heat dissipation.
Equipped with a metal housing and a high protection rating of IP65/IP67, the XH-LPV-120W series is suitable for both indoor and outdoor applications.
