プロダクト細部
起源の場所: 中国広州
ブランド名: Micacle Bean
証明: CE ROHS
モデル番号: XH-MW
支払及び船積みの言葉
最小注文数量: 10
価格: negotiate
パッケージの詳細: 44*33*45CM
受渡し時間: 7~10 営業日以内に
支払条件: L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 月あたり5000個
1出力タイプ: |
AC-DC |
2出力電圧: |
12v,24v |
3出力電力: |
150W |
4入力電圧: |
90-130V/170-250A |
5出力電流: |
12.5A/6.25A |
6保証: |
2年 |
7作業温度: |
-25 ~ +70°C (下降曲線を参照してください) |
8繋がり: |
ワイヤー |
9証明書: |
CE ROHS |
10起源の場所: |
広東,中国 |
出力タイプ: |
AC-DC |
出力電圧: |
12v,24v |
出力電力: |
150W |
入力電圧: |
90-130V/170-250A |
出力電流: |
12.5A/6.25A |
保証: |
2年 |
作業温度: |
-25 ~ +70°C (下降曲線を参照してください) |
繋がり: |
ワイヤー |
証明書: |
CE ROHS |
起源の場所: |
広東,中国 |

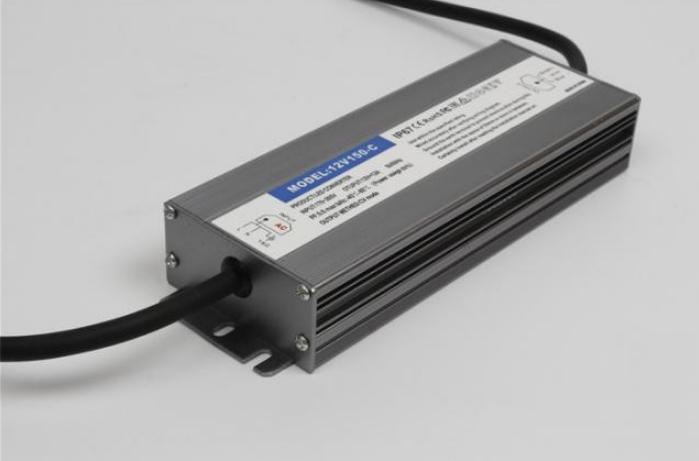

150W LED Power Supply Waterproof Input Output 12V 24V Single Output Smps
| Model | XH-MW-12150 | XH-MW-24150 |
| DC output voltage | 12V | 24V |
| Rated output current | 12.5A | 6.25A |
| Output current range | 0~20.8A | 0~10.4A |
| Ripple and noise | 200mV | 250mV |
| DC output power | 150W | 150W |
| Efficiency | 84% | 86% |
| Input voltage | AC 90V~130V/170V~250V | |
| Working temperature and humidity | -30~+50 centigrades 20-99% RH non-condensing(waterproof) | |
| Store temperature and humidity | -40~+80centigrades 10-99% RH | |
| Input frequency | 50-60Hz | |
Power supply FAQ
1. Q: How long is the warranty period?
A: 2 Years
2. Q: Do you support OEM & ODM?
A: Yes, more than 10 years' exprience
3. Q: Can you print our company label and stick it to the product for me?
A: Yes
4. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment;
For big orders, usually the delivery time is within 7 working days; OEM and ODM orders, within 15 working days.
5. What certificates do your factory have?
A: CE, ROHS,
1.Who are we?
We are based in Guangdong, China, start from 2004,sell to South America(20.00%),South Asia(20.00%),North America(15.00%),Western Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Eastern Asia(5.00%).
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LED Power Supply,LED light
4.Why should you buy from us not from other suppliers?
we are a high-tech enterprise which integrates production, R&D and sales of LED power supply,Master Power has 11 independent intellectual property rights patents, product passed CE ROHS
5.What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Power supply Product Show
