プロダクト細部
起源の場所: 中国深Shenzhen
ブランド名: Miracle Bean
証明: CE ROSH EMC
モデル番号: XH-LPV-250W
支払及び船積みの言葉
最小注文数量: 1ピース
価格: negotiate
パッケージの詳細: 漫画または木製
受渡し時間: 5-15DAYS
支払条件: T/T、ウェスタンユニオン
供給の能力: 1か月あたり10000ピース
1アイテム名: |
電源 |
2シェル素材: |
アルミニウム合金 |
3IPクラス: |
IP67/IP65 |
4ペーティング温度: |
-20°C〜60°C |
5製品サイズ: |
205*69*43mm |
6資格: |
CE/FCC/ROHS |
7ユーザーパワー: |
250W |
8色: |
銀 |
9保護: |
短絡/温度/過剰荷重 |
10効率: |
91％ |
アイテム名: |
電源 |
シェル素材: |
アルミニウム合金 |
IPクラス: |
IP67/IP65 |
ペーティング温度: |
-20°C〜60°C |
製品サイズ: |
205*69*43mm |
資格: |
CE/FCC/ROHS |
ユーザーパワー: |
250W |
色: |
銀 |
保護: |
短絡/温度/過剰荷重 |
効率: |
91％ |

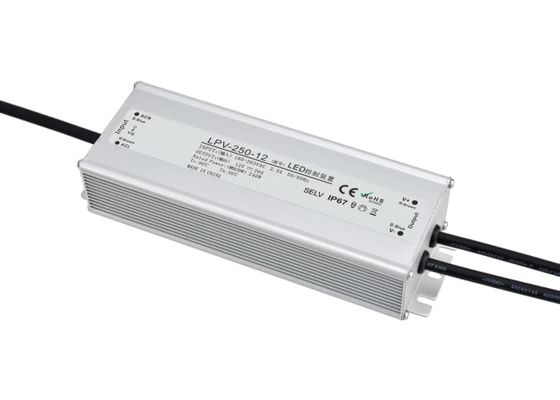

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
Product Description
| Modle | XH-LPV-250W |
| Output current range | 12V/24V/48V |
| DC output power | 250W |
| AC Input Current |
2.5A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
205*69*43mm(L*W*H) |
| Efficiency |
91% |
| Weight |
0.85kg |
Description
The XH-LPV-250W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 12V, 24V, 36V, and 48V.
With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-250W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.
The XH-LPV-250W comes with comprehensive protection functions and a 5G vibration resistance capability. It complies with safety regulations such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting, providing a cost-effective solution for various LED lighting applications.
Key Advantages
Our Services
FAQ
4. Q: How long is the warranty period?
A: 3 Years
5. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
